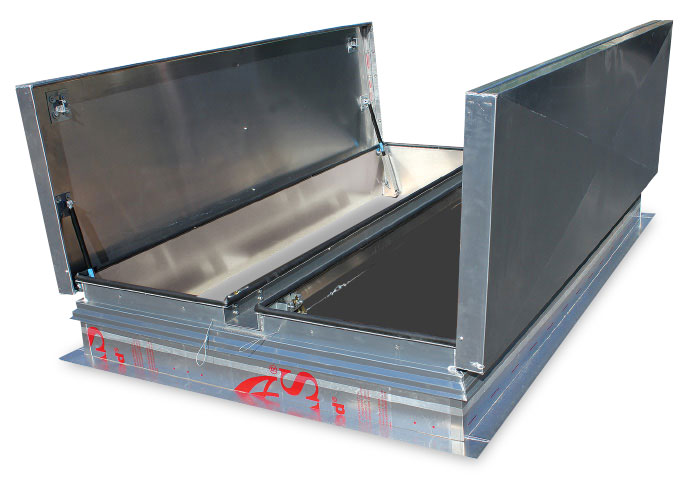

SVA Aluminum Ul Listed Smoke Vent - Double Leaf

Description:

• Acudor Smoke Vents are designed to provide an economical solution for fire ventilation by removing deadly smoke, heat, and gases from a burning building.

Features SVA:

• 1/8" Aluminum
• 12" high insulated curb
• UL Listed Fusible or McCabe Resettable Links
• Inside and Outside manual release
• High performance gas springs

Optional Features SVA:

• Curb mount or Metal Building Flange
• Double-Dome Polycarbonate lids for daylighting
• Louvered curb for ventilation

SVA Specifications:

• Cover: Double-skin construction (“in box type design”) with 1" cellulose insulation and a continuous EPDM foam weather/draft seal gasket that is attached to the inside of cover to provide a flush, tight fit. Designed to support a live load of 40lbs./sq. ft., the cover is 11 gauge aluminum with a 20 gauge aluminum inside liner.
• Curb: 1/8" Aluminum with 1" thick fiberboard roof insulation at curb exterior. Curb is 12" high, with 3.375" wide bottom flange and pre-drilled mounting holes.
• Hinge: Heavy duty galvanized steel / aluminum pintle hinges with 3/8" pin.
• Opening: Gas spring operators allow cover to open and close with ease. Inside and outside release allows for manual lid operation.
• Door Latch: Self latching Slam Latch. Supplied standard with 165° UL Listed Fusible Link. Resettable McCabe link available.
• Finish: Aluminum: Mill Finish.

Please click on the image below to enlarge:

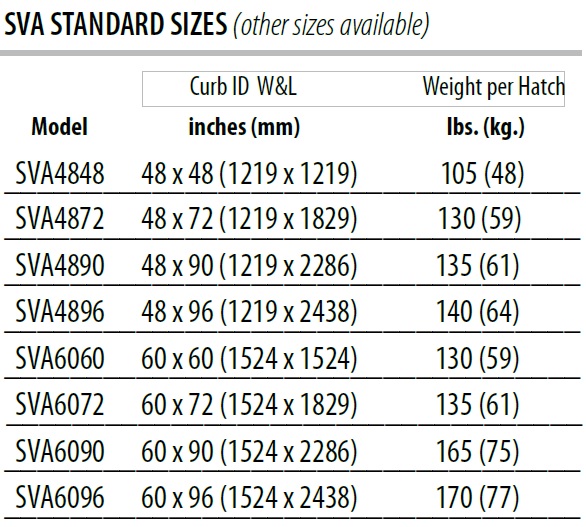

Sizes:
