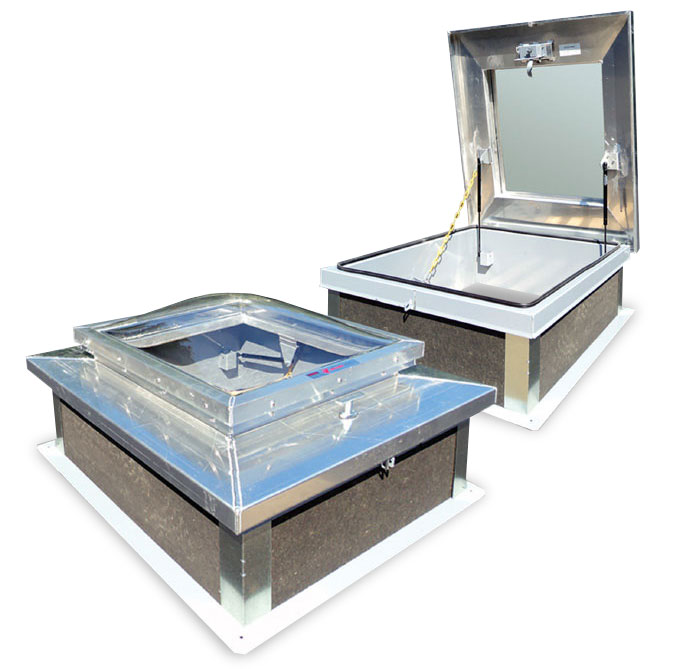

RHADD Galvanized Domed Roof Hatch

Description:

• Acudor Domed Roof Hatches are designed to provide convenient, economical access to the roof of a building. The Polycarbonate Domes provide the benefit of a skylight.

Features RHADD:

• Clear, bronz, white, combination polycarbonate double-skin dome

Optional Features RHADD:

• Stainless Steel cover, curb, and/or hardware
• Louvered Curbs
• Curb Mounted Units
• Curb pitch corrected for sloped roof
• All Aluminum construction, cover and curb

RHADD Specifications:

• Cover: Double-skin construction (“in box type design”) with 1" cellulose insulation and a continuous EPDM foam weather/draft seal gasket that is attached to the inside of cover to provide a flush, tight fit. Designed to support a live load of 40lbs./sq. ft., the cover is 1/8” thick aluminum. To accommodate the polycarbonate domes, an aluminum extrusion with built in condensation drainage channel is provided.
• Curb: 14 gauge galvanized steel with 1" thick fiberboard roof insulation at curb exterior. Curb is 12" high, with 3.375" wide bottom flange and pre-drilled mounting holes.
• Hinge: Heavy duty galvanized steel pintle hinges with 3/8" pin.
• Opening: Gas spring operators allow cover to open and close with ease. Inside pull handle allows for easy control when closing cover.
• Door Latch: Self latching, zinc plated outside T handle with stainless steel inside lock and lever assembly. Unit also has inside and outside padlock provisions.
• Finish: (Curb) Material is prepared with an iron phosphate wash, followed by a rust inhibiting primer, and then a baked on polyester enamel grey paint, (Cover) Mill finish.

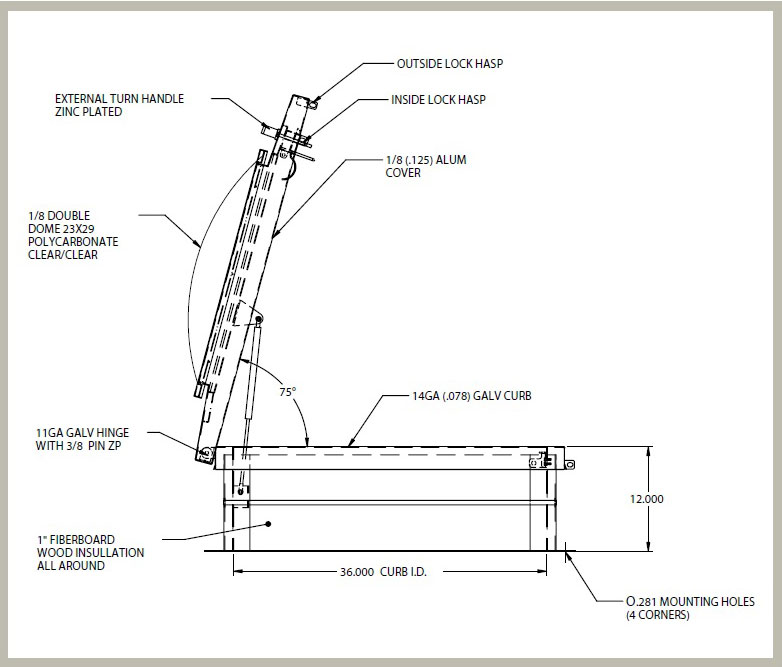

Please click on the image below to enlarge:

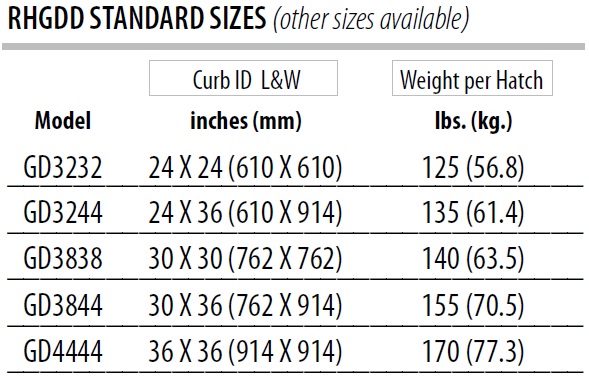

Sizes:
