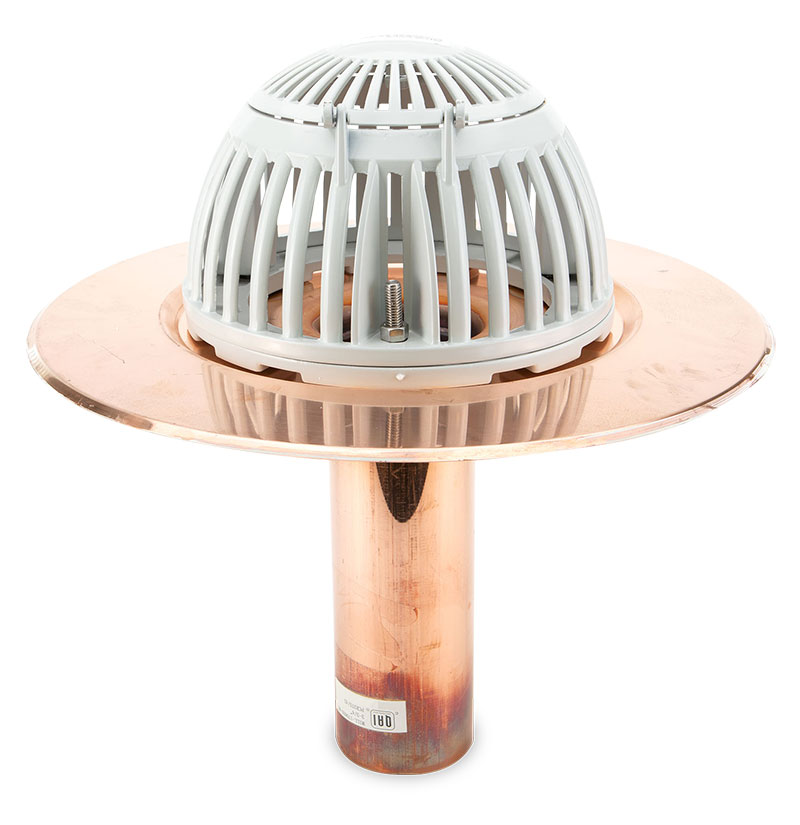

New Construction 2" Copper, w/alum flange, w/flip top dome

• SKU: P-P80200F
• BOX QTY: 1

Dome Description:

• Two piece secured hinged HD cast aluminum Vandal Proof dome
• Easy maintenance with single Phillips screw
• Top fully opens with 6 ½" opening
• 3 bolt design allows ease of installation
• Platinum flip top dome fits all sizes of Platinum retrofit and new construction copper and aluminum drains
• Designed to accommodate contractor metal foil
• Adhesive label
• 33 weir openings for effective drainage
• Available and boxed as ‘dome only’ in boxes of 5
• Platinum Flow Control can also be used as needed
• Flip top dome series copper drains are SKU designated beginning with P (Premium)
• Standard dome on all P series copper drains

Flange / Clamping Ring Description:

• Heavy cast aluminum construction
• 9 drainage channels to allow full drainage
• Flange designed for optimum seal with roof flashing
• Fits all sizes of Platinum copper drains
• Reversible to allow elevation drainage options

Drain Deck and Stem Description:

• 24 oz/.05" (1.2mm) prime roofing grade T-2 copper
• Available in either flat or recessed deck
• Argon-Arc welded and overlapping seams for clean solid weld fusion
• Tig welded 3/8" stainless steel bolts to copper deck
• Extra set of stainless steel nuts (6)
• Code approved CSA-B79
• Available in Retrofit sizes 2 ¾", 3 ¾", 4 ¾", 5 ¾"
• Available in Recessed deck sizes 2 ¾", 3 ¾", 4 ¾" and 5 ¾"
• Available in New Construction sizes 2", 3", 4" and 6" in flat deck and in sizes 3", 4" and 6" in recessed deck
• 1.2 mm copper for drains up to 3", 1.5mm for 5" and 2.0mm copper for and 6" drains
• 18" wide deck flange

Dimensions - click to enlarge:
