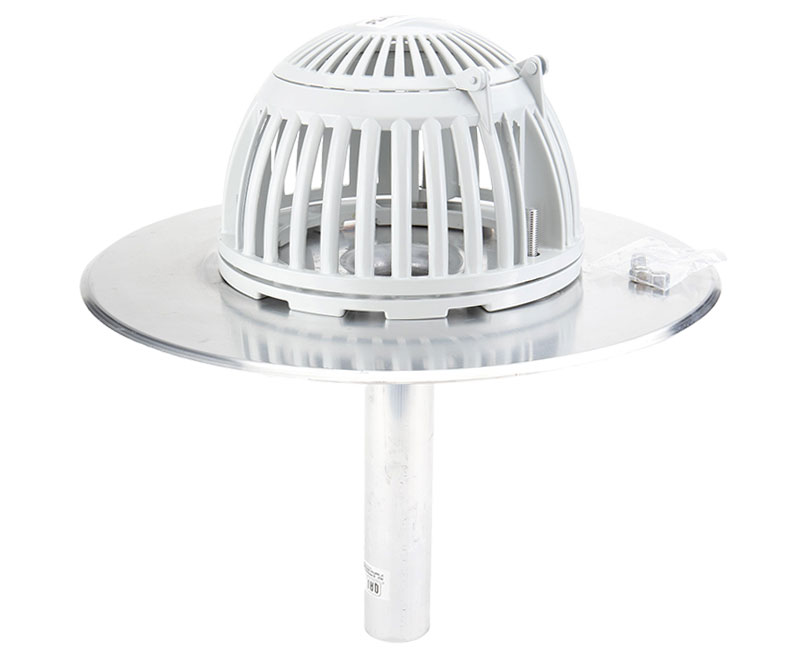

Aluminum Retrofit Flat Deck Drains with Seal
1 3/4" Aluminum Retrofit Flat, w/dome, w/seal
- SKU: P-PAF80175/2C
- BOX QTY: 1
Dome Description:
- Foundry cast heavy duty aluminum dome
- Dome top designed for contractors label
- 33 weir slots for maximum water flow
- Fits all sizes of Platinum copper drains
- 3 bolt design for efficient installation
- Vandal resistant yet contractor friendly
Flange/Clamping Ring Description:
- Heavy cast aluminum construction
- 9 drainage channels to allow full drainage
- Flange designed for optimum seal with roof flashing
- Fits all sizes of Platinum copper drains
- Reversible to allow elevation drainage options
Drain Deck and Stem Description:
- Deck of 1.8 mm Alum 1060 grade premium aluminum
- Stem of 1.7 mm Alum 1063 T-5 grade premium aluminum
- Available in Flat deck sizes 1 ¾", 2 ¾", 3 ¾", 5 ¾" and in Recessed deck sizes 2 ¾", 3 ¾" and 5 ¾"
- Aluminum welded and overlapping seams for clean solid weld fusion
- Aluminum Argon Arc welded bolts and stem to deck *Platinum Exclusive For Added Strength*
- 3/8" aluminum T6-6061 bolts to aluminum deck
- Extra set of stainless steel nuts (6)
- Code approved CSA-B79
- Available in Retrofit sizes 2 ¾", 3 ¾" and 5 ¾"
Dimensions - click to enlarge:
